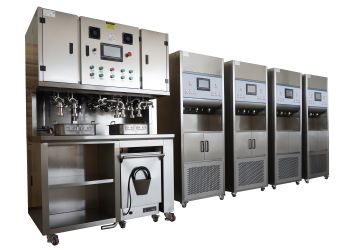

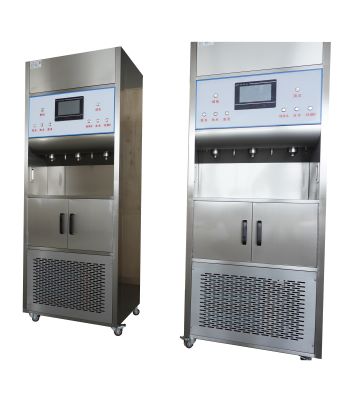

Hot and cold beverage machine for catering stores for playing herbal tea, mushroom soup, bone broth, adding soup machine for catering stores for playing hot pot base soup
Technical parameters.
1. hot water tank heating power for single-phase 2KW, cooling power 1.4KW
2. equipment power supply should be single-phase 220V/50HZ, and have reliable grounding, the main power wire diameter recommended 2.5 square
3. rated current: 16A
4. mechanical size: 720*530*2000mm
5. net weight: 130kg
Technical parameters.
1. hot water tank heating power for single-phase 2KW, cooling power 1.4KW
2. equipment power supply should be single-phase 220V/50HZ, and have reliable grounding, the main power wire diameter recommended 2.5 square
3. rated current: 16A
4. mechanical size: 720*530*2000mm
5. net weight: 130kg
6. refrigerant: R22
Technical parameters:
1. hot water tank volume of about 117 liters, hot water tank heating power for a single group of three-phase 9KW (another group of 9KW heating pipe backup).
2. The power supply of the equipment should be 380V/50HZ with three-phase five-wire system, and the main power wire diameter is recommended to be 6-10 square cables.
3. the volume of mushroom soup tank is about 74 liters, its heating power is single-phase 2KW.
4. Rated power: 20A
5. Mechanical size: 720*530*2000mm
6. net weight: 250kg
